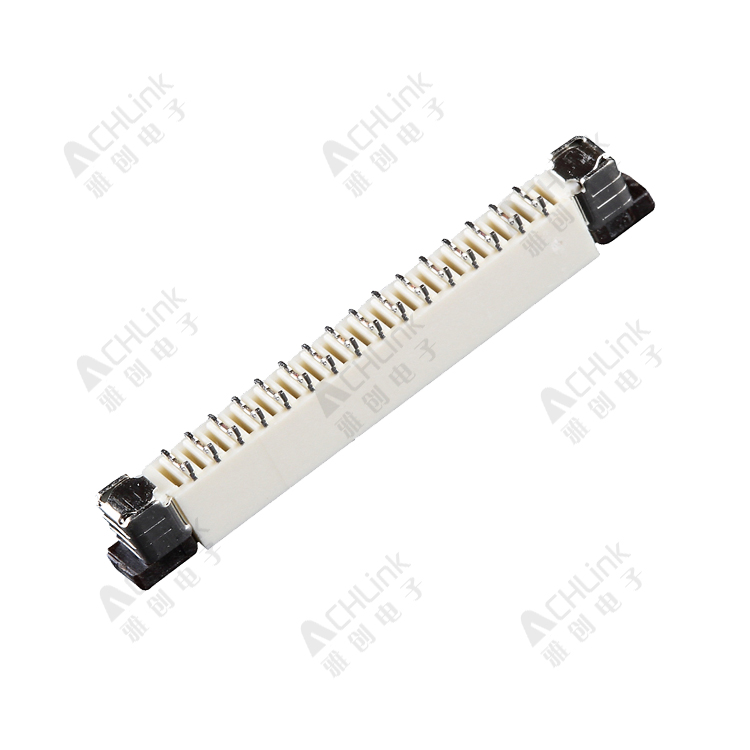

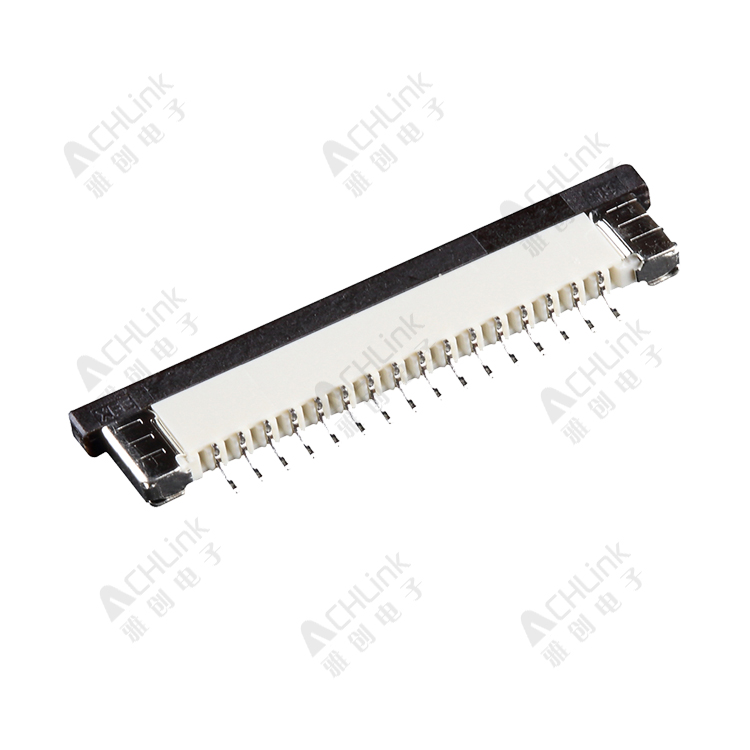

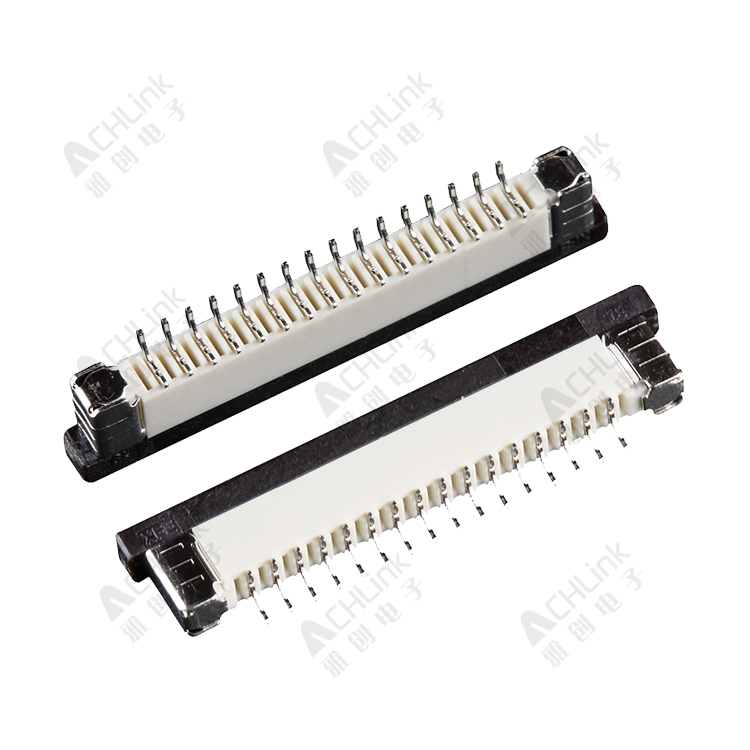

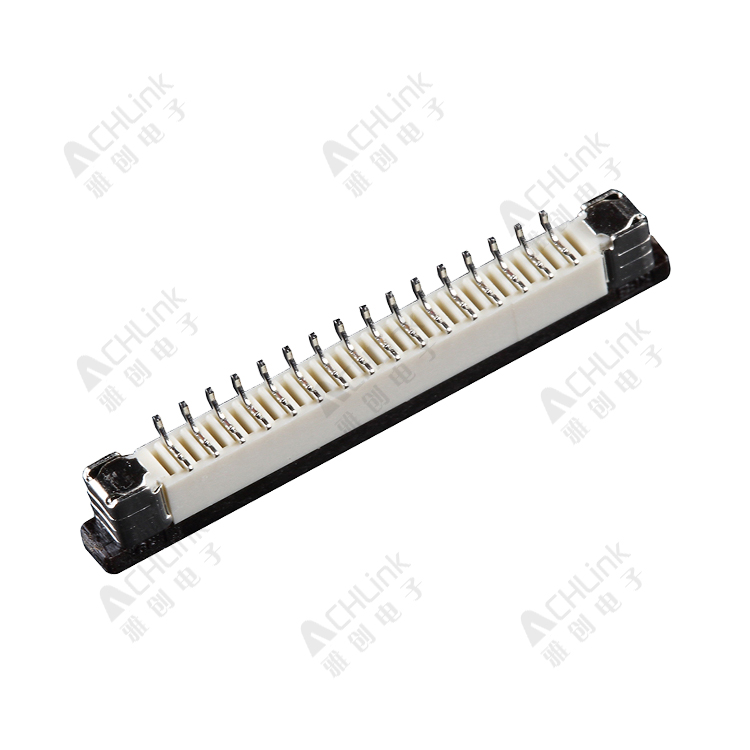

FPC1.0MM LOWER BAND LOCK SMT H=2.0MM
左滚动
  • FPC1.0MM LOWER BAND LOCK SMT H=2.0MM
  • FPC1.0MM LOWER BAND LOCK SMT H=2.0MM
  • FPC1.0MM LOWER BAND LOCK SMT H=2.0MM
  • FPC1.0MM LOWER BAND LOCK SMT H=2.0MM
右滚动
  • FPC1.0MM LOWER BAND LOCK SMT H=2.0MM
PRODUCT MODEL:6013-021-0002 1. Material: A.Housing: LCP Nature Color( UL 94V-0) B.Cover: LCP Black( UL 94V-0) C.Terminal: Phosphor Bronze D.Stator: Brass 2. Parameter: 1)Standard conditions: A Operation Temperature: -40 ~ +85℃ Without ice or dew B Operation Humidity: 20-85%RH C Storage Temperature:-10~+50℃ Without ice or dew D Storage Humidity: 20~85%RH 2)Rating Voltage:20℃ 50V (AC/DC) ambient temperature 20℃ 50V (AC/DC) 3)Rating Current :20℃ 0.5A / PIN ambient temperature 20℃ 0.5A / PIN
