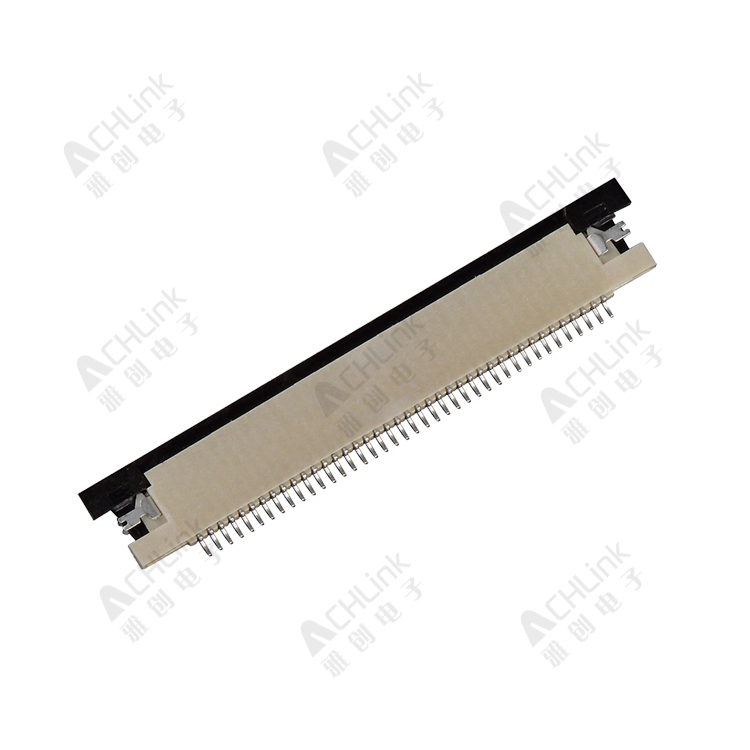

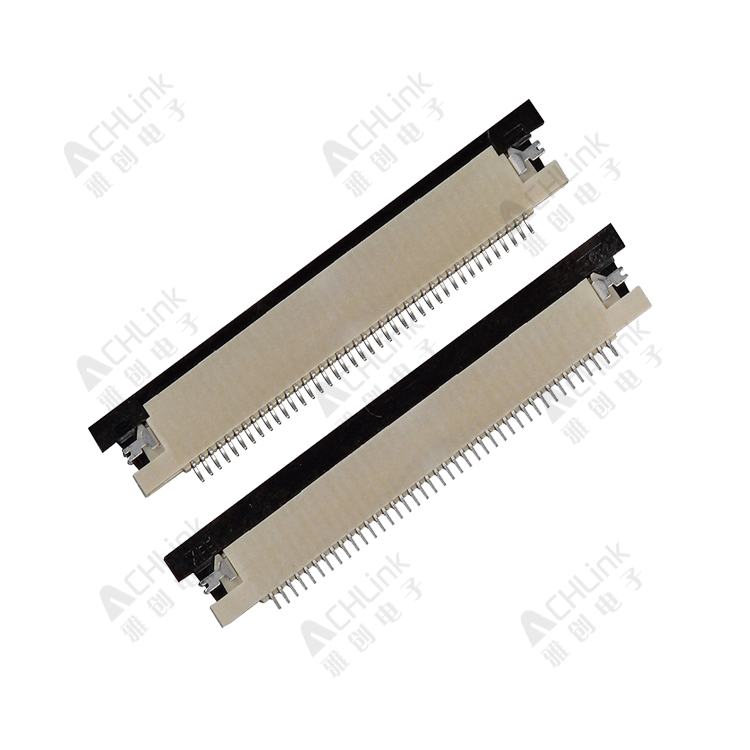

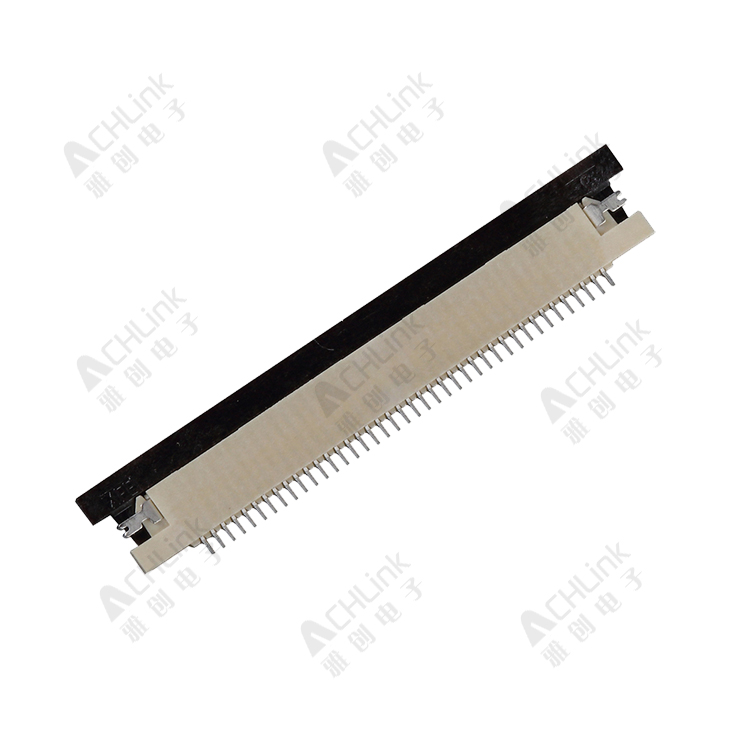

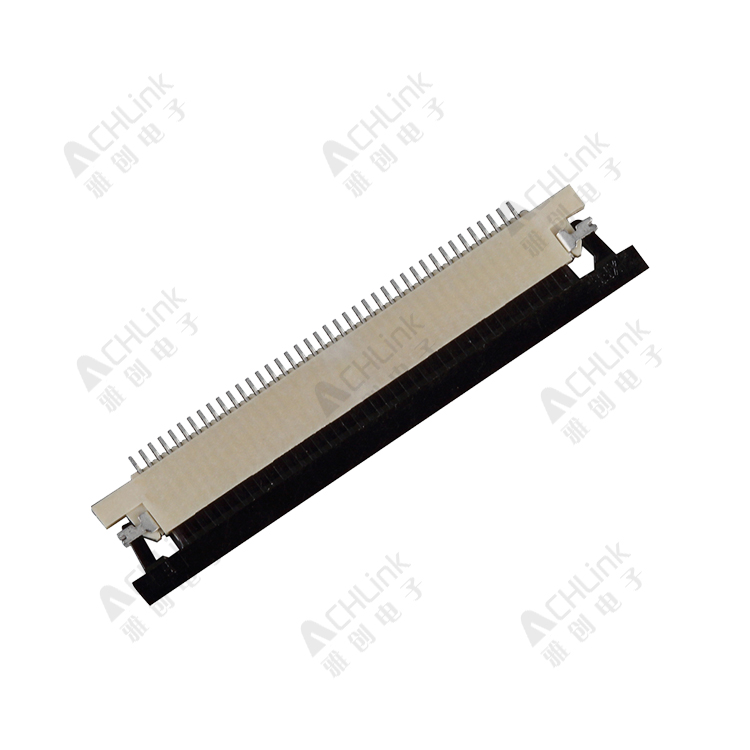

  • FPC PITCH0.5MM Drawer style SMT H=1.2MM
PRODUCT MODEL:6011-XXX-0002
1. Material:
A.Housing: LCP Nature Color( UL 94V-0)
B.Cover: LCP Black( UL 94V-0)
C.Terminal: Phosphor Bronze
D.Stator: Brass
2. Parameter:
1)Standard conditions:
A Operation Temperature: -40 ~ +85℃
Without ice or dew
B Operation Humidity: 20-85%RH
C Storage Temperature:-10~+50℃ Without ice or dew
D Storage Humidity: 20~85%RH
2)Rating Voltage:20℃ 50V (AC/DC)
ambient temperature 20℃ 50V (AC/DC)
3)Rating Current :20℃ 0.5A / PIN
ambient temperature 20℃ 0.5A / PIN
