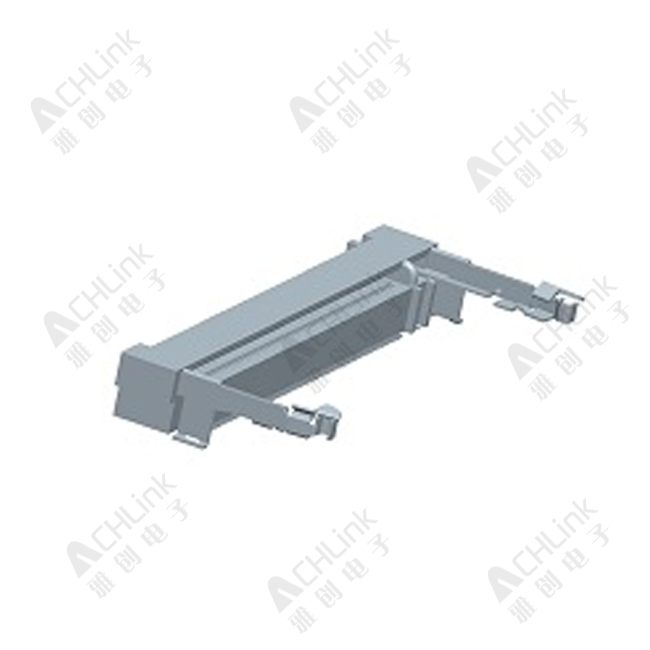

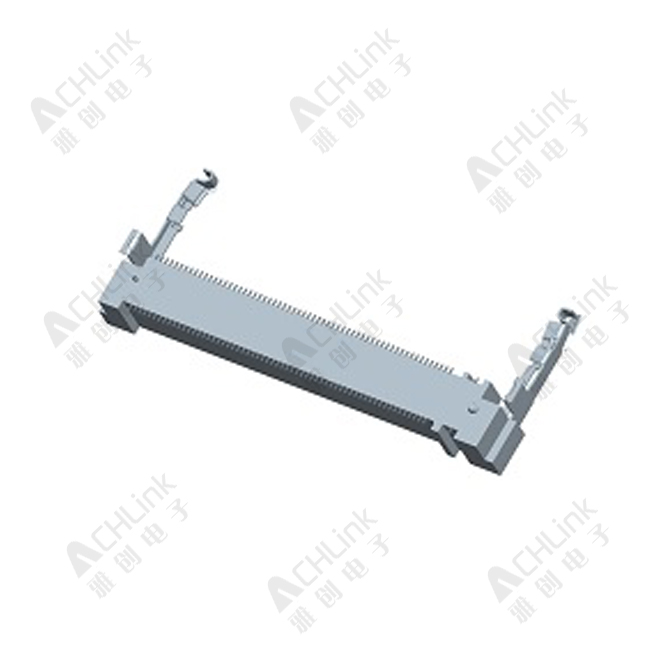

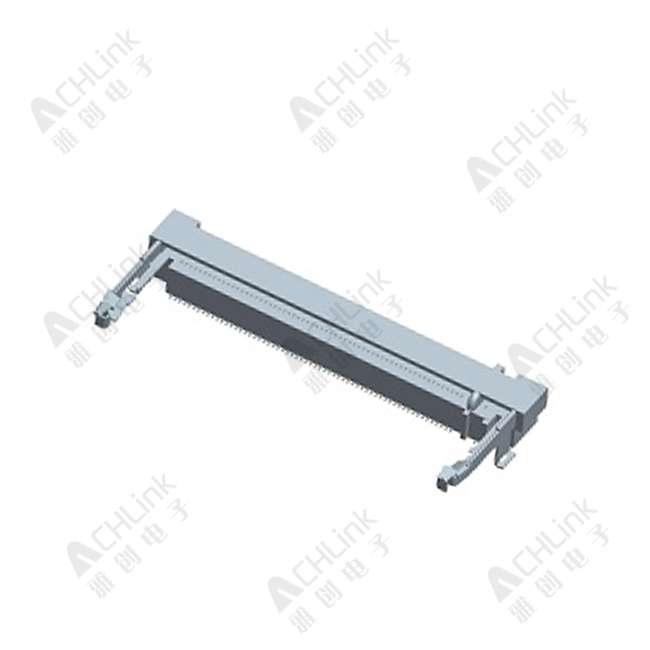

- Mini PCI 124Pin H15.5mm.Dual-SMT type. socket
NOTES:
1.MATERIAL SPECIFICATION
1-1.HOUSING: THERMOPLASTIC LCP UL94V-0. BLACK.
1-2.CONTACT: COPPER ALLOY C5210H.
1-3.LATCH: STAINLESS STEEL SUS301, MATTE TIN PLATING OVER NICKEL.
2.PLATING SPECIFICATION
2-1.CONTACT AREA: GOLD FLASH(1u"min), ALL OVER NICKEL.
2-2.SOLDERING AREA: GOLD FLASH(1u"min) PLATING.
1.MATERIAL SPECIFICATION
1-1.HOUSING: THERMOPLASTIC LCP UL94V-0. BLACK.
1-2.CONTACT: COPPER ALLOY C5210H.
1-3.LATCH: STAINLESS STEEL SUS301, MATTE TIN PLATING OVER NICKEL.
2.PLATING SPECIFICATION
2-1.CONTACT AREA: GOLD FLASH(1u"min), ALL OVER NICKEL.
2-2.SOLDERING AREA: GOLD FLASH(1u"min) PLATING.
