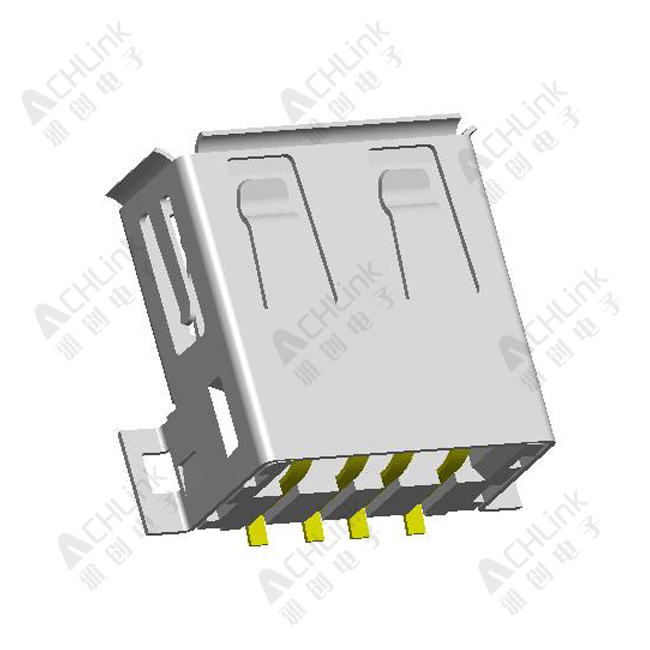

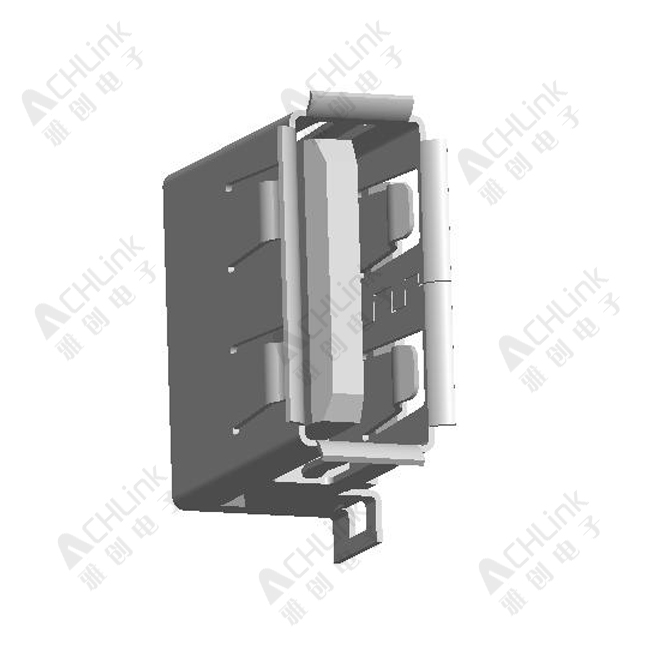

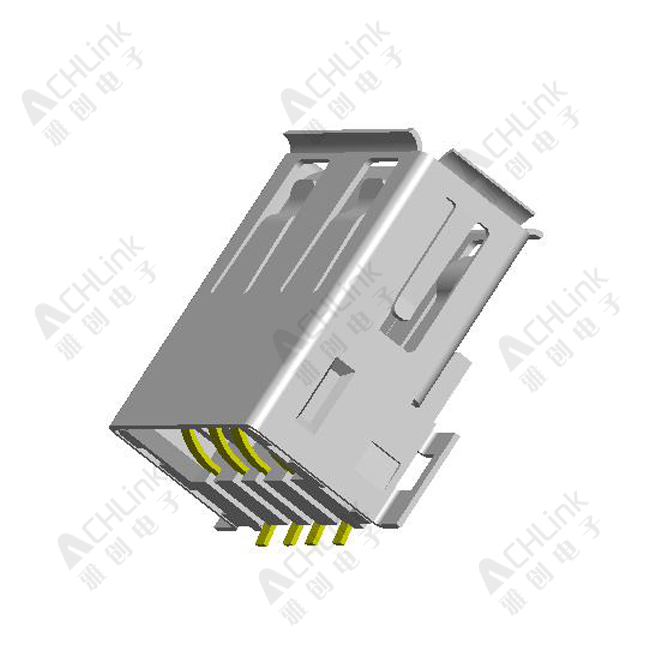

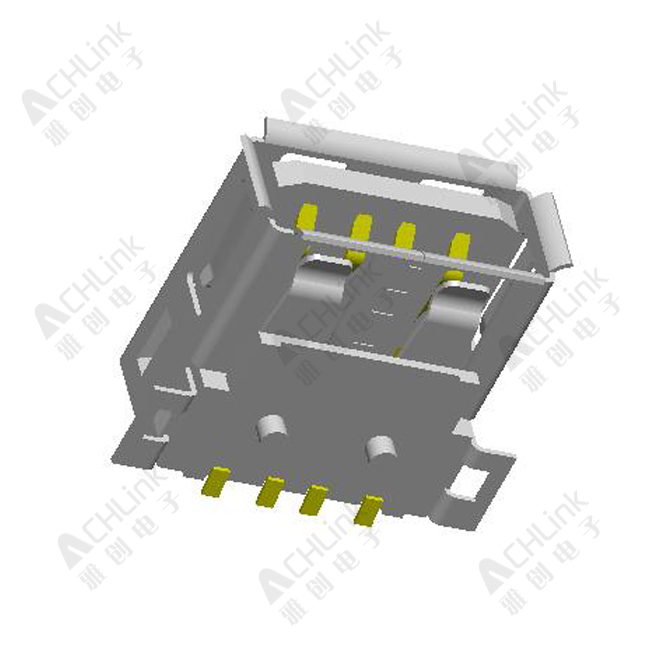

PRODUCT MODEL:1040-404-0004
Housing: High temperature
thermoplastic with g.f,UL94v-0
Contact: copper alloy,t=0.20mm
Shell: copper alloy,t=0.25mm
Specification:
Current rating: 1 A Max.
Dielectric withstanding
voltage: 100 V(ac) for 1 min.
Contact resistance: 50 mW Max.
Insulation resistance: 100 MW Min.
Total mating force: 3.57 Kgf Max.
Total unmating force: 1.0 Kgf Min.0.81~2.05
Kgf Min.after 10000 insertion/extration cycles
Temperature range: -30°C~80°C
