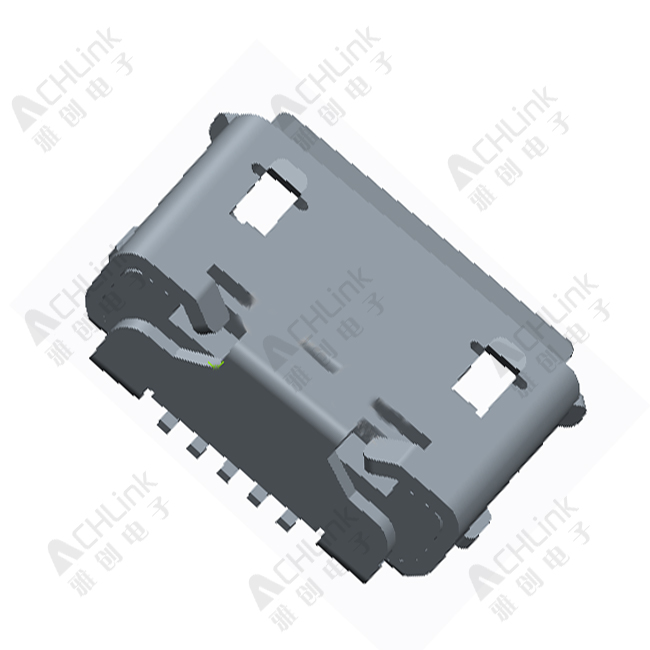

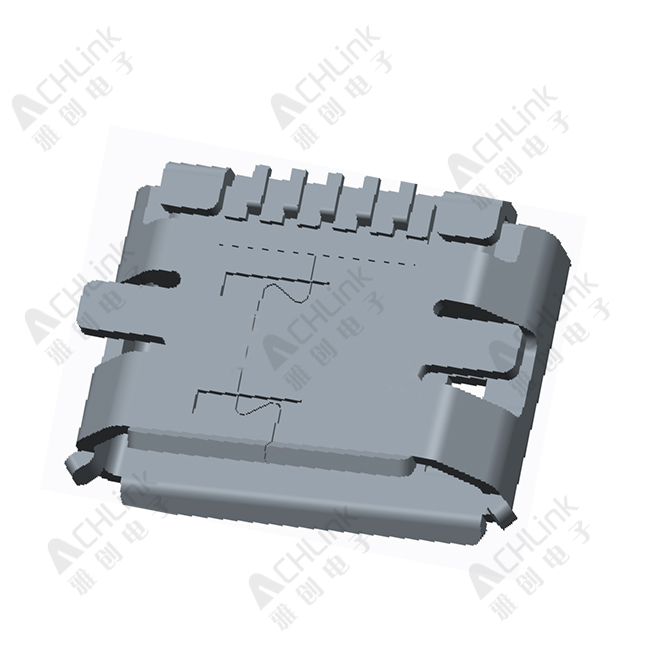

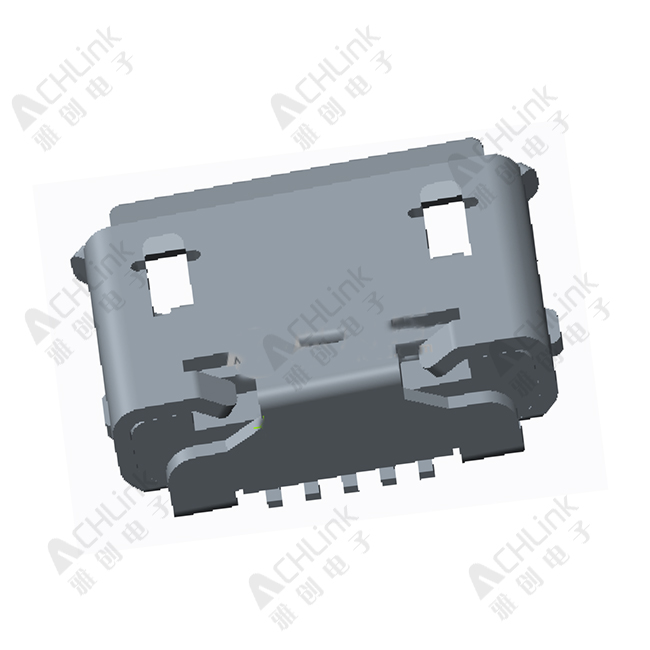

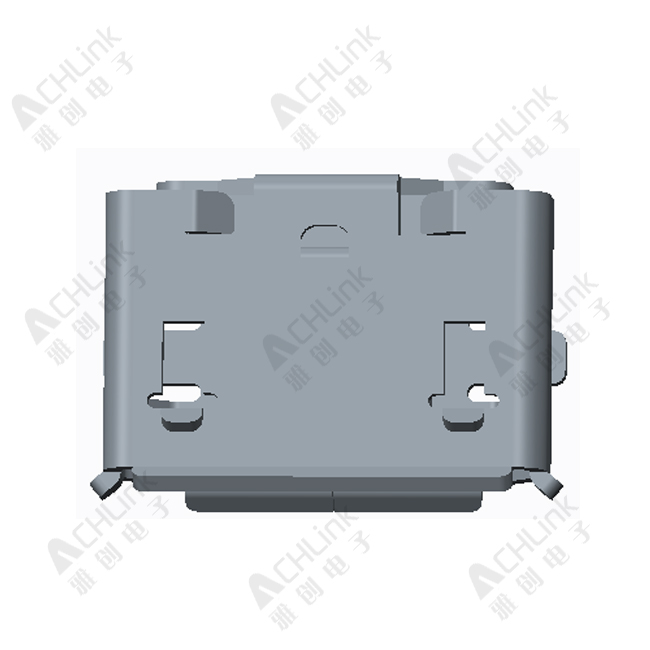

- MICRO USB F 5P B SMT COPPER SHELL
PRODUCT MODEL:1090-405-0003
1.Material:
1.1 Housing: High temperature
thermoplastic with g.f,UL94v-0
1.2 Contact: copper alloy,t=0.20mm
1.3 Shell: copper alloy,t=0.25mm
2.Specification:
2.1 Current rating: 1 A Max.
2.2 Dielectric withstanding
voltage: 100 V(ac) for 1 min.
2.3 Contact resistance: 50 mW Max.
2.4 Insulation resistance: 100 MW Min.
2.5 Total mating force: 3.57 Kgf Max.
2.6 Total unmating force: 1.0 Kgf Min.0.81~2.05
Kgf Min.after 10000 insertion/extration cycles
2.7 Temperature range: -30°C~80°C
1.Material:
1.1 Housing: High temperature
thermoplastic with g.f,UL94v-0
1.2 Contact: copper alloy,t=0.20mm
1.3 Shell: copper alloy,t=0.25mm
2.Specification:
2.1 Current rating: 1 A Max.
2.2 Dielectric withstanding
voltage: 100 V(ac) for 1 min.
2.3 Contact resistance: 50 mW Max.
2.4 Insulation resistance: 100 MW Min.
2.5 Total mating force: 3.57 Kgf Max.
2.6 Total unmating force: 1.0 Kgf Min.0.81~2.05
Kgf Min.after 10000 insertion/extration cycles
2.7 Temperature range: -30°C~80°C
