Location：Home > Products > USB CONNECTOR > USB 2.0 4PIN AF 90 °BOTH SIDES FIXED PIN IS STRAIGHT FOOT

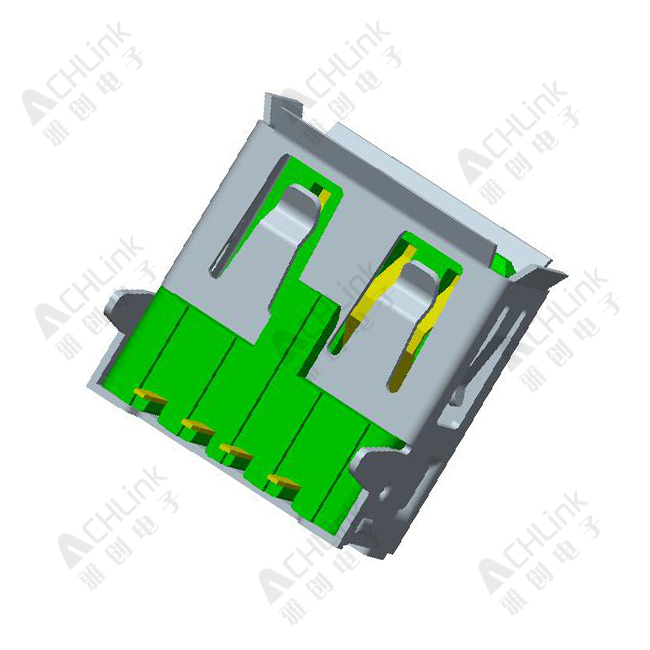

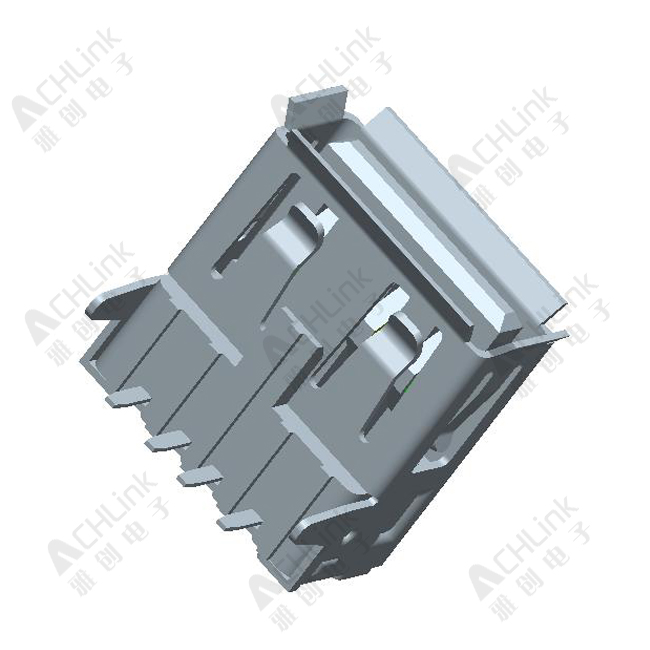

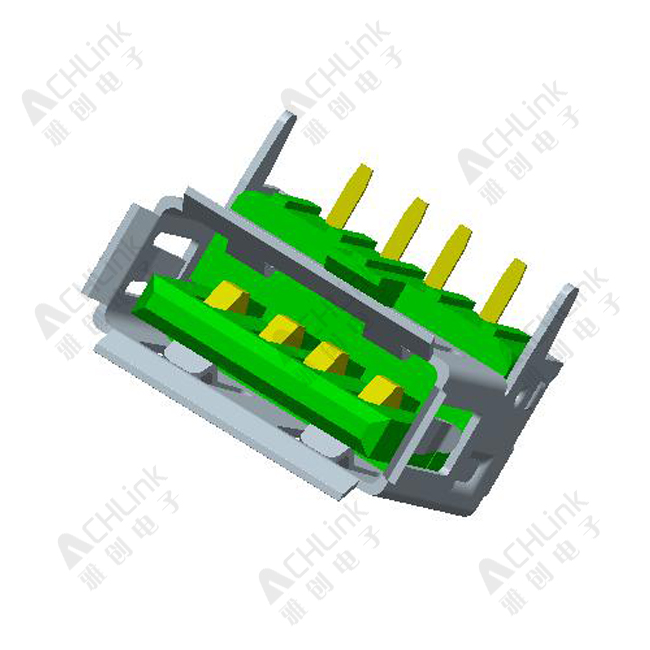

USB 2.0 4PIN AF 90 °BOTH SIDES FIXED PIN IS STRAIGHT FOOT
左滚动
  • USB 2.0 4PIN AF 90 °BOTH SIDES FIXED PIN IS STRAIGHT FOOT
  • USB 2.0 4PIN AF 90 °BOTH SIDES FIXED PIN IS STRAIGHT FOOT
  • USB 2.0 4PIN AF 90 °BOTH SIDES FIXED PIN IS STRAIGHT FOOT
  • USB 2.0 4PIN AF 90 °BOTH SIDES FIXED PIN IS STRAIGHT FOOT
  • USB 2.0 4PIN AF 90 °BOTH SIDES FIXED PIN IS STRAIGHT FOOT
右滚动
  • USB 2.0 4PIN AF 90 °BOTH SIDES FIXED PIN IS STRAIGHT FOOT
PRODUCT MODEL:1040-404-0003
CURRENT RATING: 1.0AMPS
INSULATOR RESISTANCE: 1000 MEGOHMS MIN
DIELECTRIC WITHSTANDING: AC 750V
OPERATING TEMPERATURE: -40°C~+85°C
CONTACT MATERICL: PHOSHOR PLATED
INSULATOR MATERIAL: PBT(UL94V-0)
CONTACT PLATED: SELECTIVE PLATED
SHELL MATERIAL BRASS
SHELL PLATED NI 50U" MIN

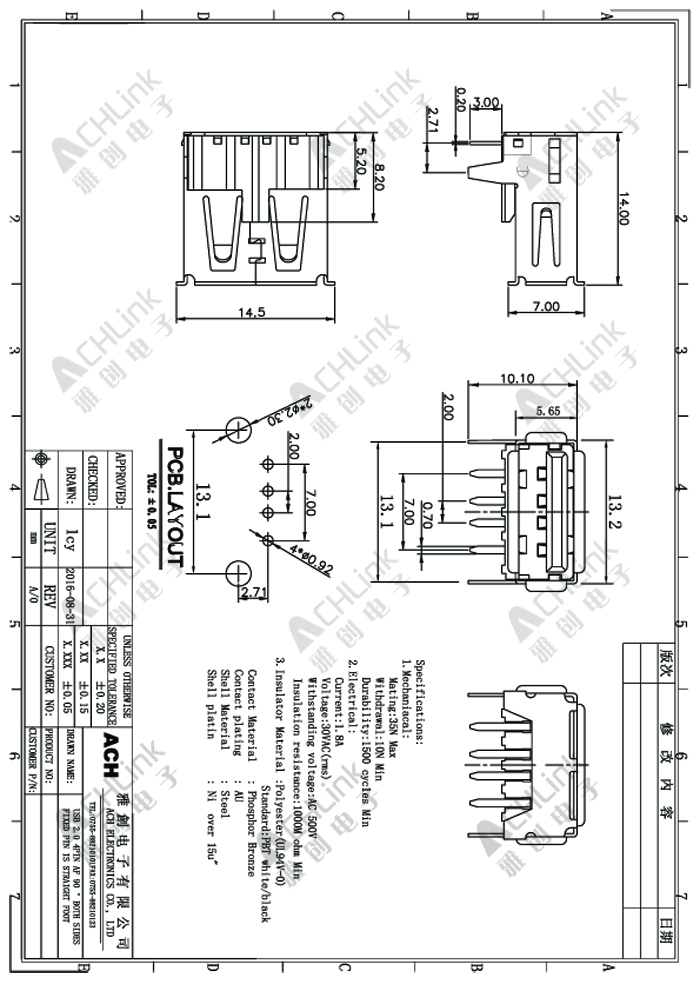

PDF:
