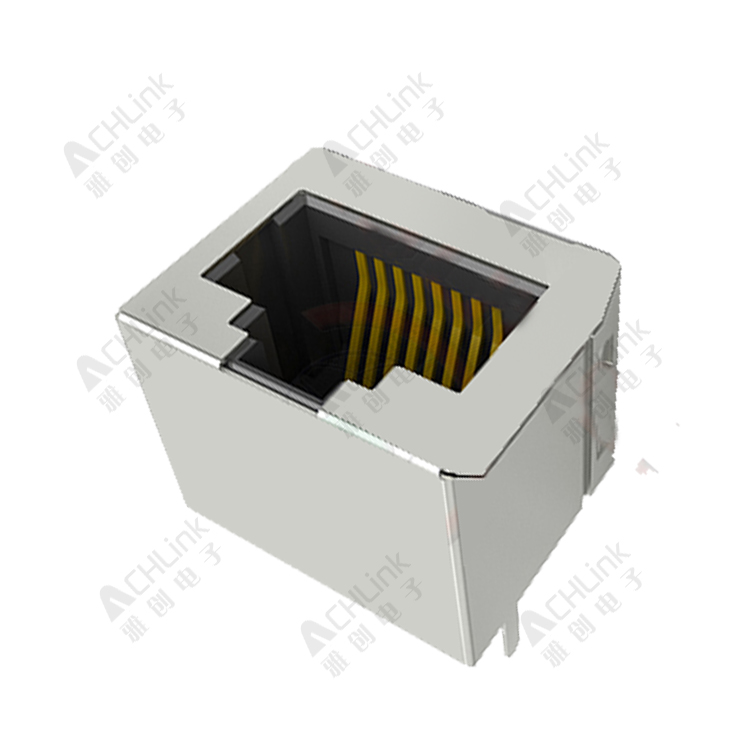

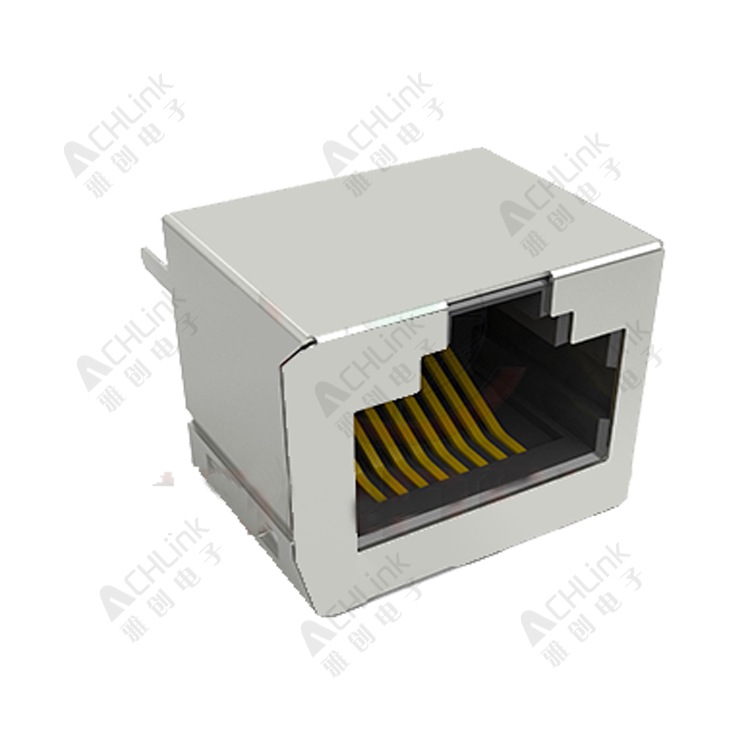

PRODUCT MODEL:0047-011-0003
Current Rating: 1.0Amps
Insulator Resistance: 1000 Megohms min
Dielectric Withstanding: AC 750V
Operating Temperature: -40°c~+85°c
Contact Matericl: Phoshor Plated
Insulator material: LCP(UL94V-0)
Contact Plated: Selective Plated
Shell Material Brass
Shell Plated Ni 50u" Min
