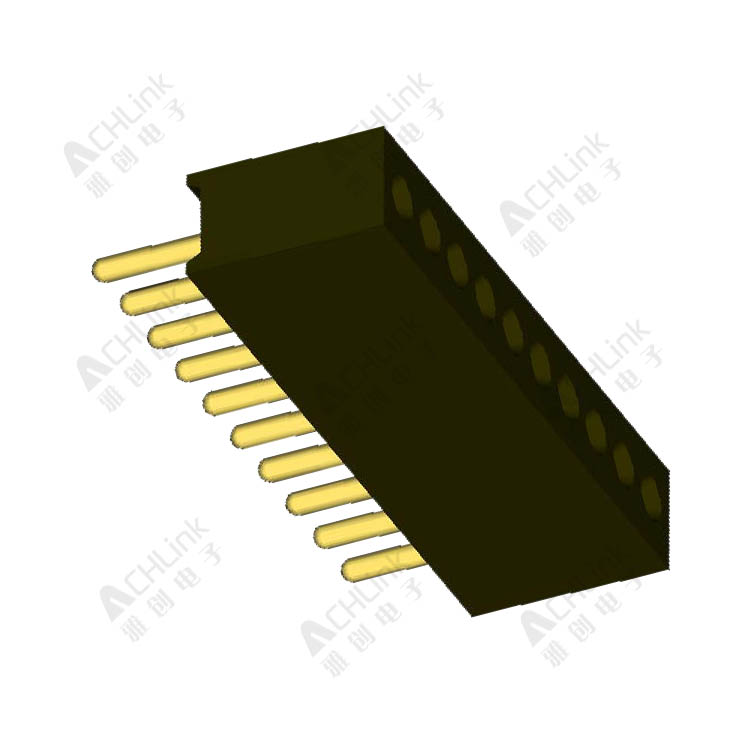

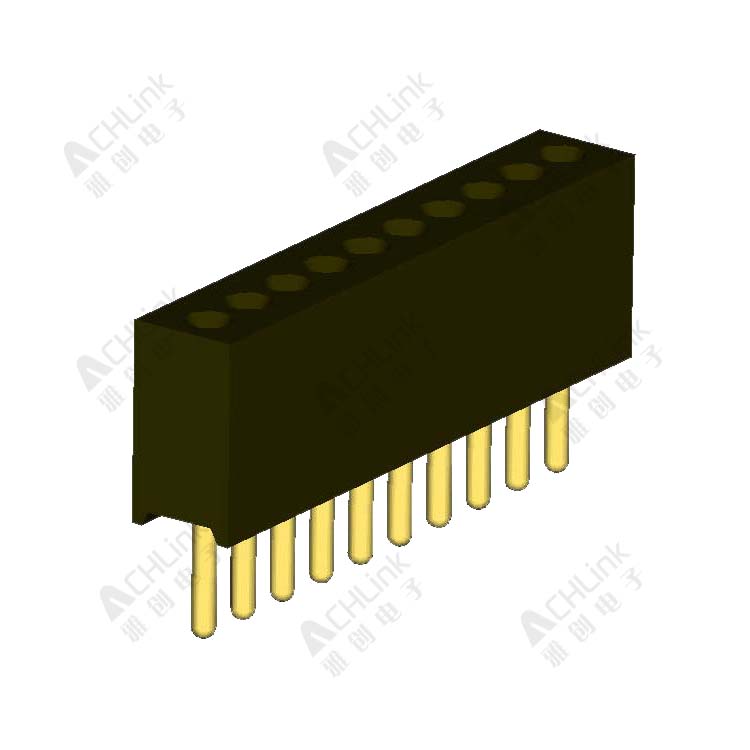

MACHINED FEMALE HEADER PH1.27MM SINGLE ROW 180° H=4.10MM
左滚动
  • MACHINED FEMALE HEADER PH1.27MM SINGLE ROW 180° H=4.10MM
  • MACHINED FEMALE HEADER PH1.27MM SINGLE ROW 180° H=4.10MM
右滚动
  • MACHINED FEMALE HEADER PH1.27MM SINGLE ROW 180° H=4.10MM
PRODUCT MODEL:4037-XXX-0001
Current Rating: 1.0Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator: PA6T UL 94V-0 Black
PDF:
