Location：Home > Products > FEMALE HEADER CONNECTOR > FEMALE HEADER PH1.27*1.27MM DOUBLE ROW 180° SIDE PILLAR

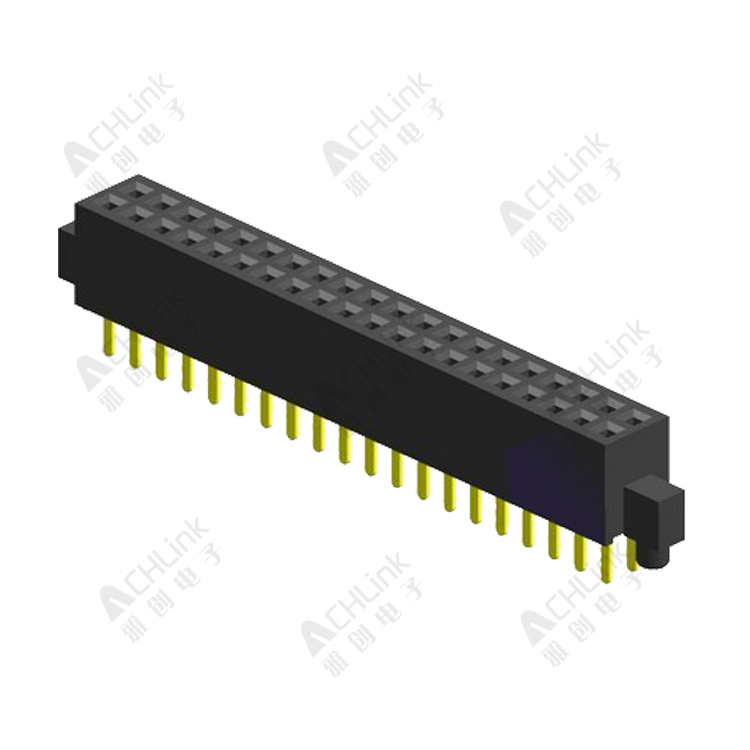

FEMALE HEADER PH1.27*1.27MM DOUBLE ROW 180° SIDE PILLAR
左滚动
  • FEMALE HEADER PH1.27*1.27MM DOUBLE ROW 180° SIDE PILLAR
  • FEMALE HEADER PH1.27*1.27MM DOUBLE ROW 180° SIDE PILLAR
右滚动
  • FEMALE HEADER PH1.27*1.27MM DOUBLE ROW 180° SIDE PILLAR
PRODUCT MODEL:4032-XXX-0004
Current Rating: 1.0Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator: PA6T UL 94V-0 Black
PDF:
Prev：Female1.00 mm Header Dula Row Straight h=2.0mm Next：MACHINED FEMALE HEADER PH1.27*1.27MM DOUBLE ROW SMTH =3.80MM
