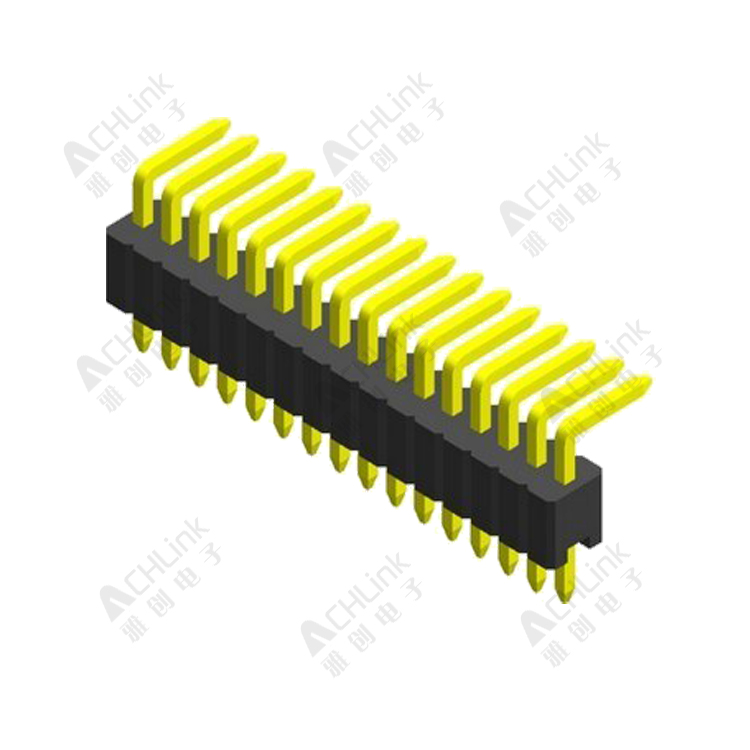

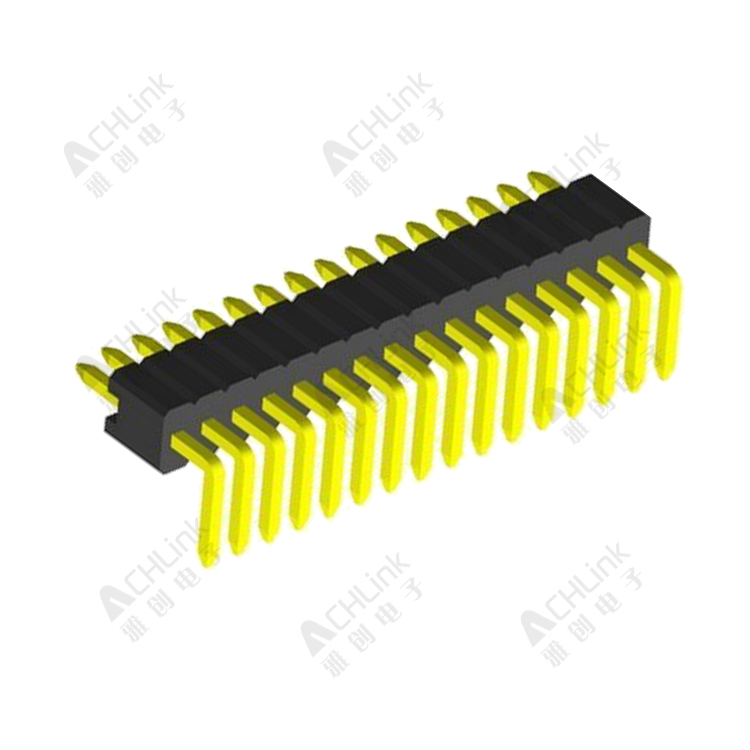

PIN HEADER PH1.0MM SINGLE ROW SINGLE PLASTIC 90° H=1.00MM
左滚动
  • PIN HEADER PH1.0MM SINGLE ROW SINGLE PLASTIC 90° H=1.00MM
  • PIN HEADER PH1.0MM SINGLE ROW SINGLE PLASTIC 90° H=1.00MM
右滚动
  • PIN HEADER PH1.0MM SINGLE ROW SINGLE PLASTIC 90° H=1.00MM
PRODUCT MODEL: 4002-XXX-0002
Current Rating: 0.75Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T,UL 94V-0 Black
PDF:
