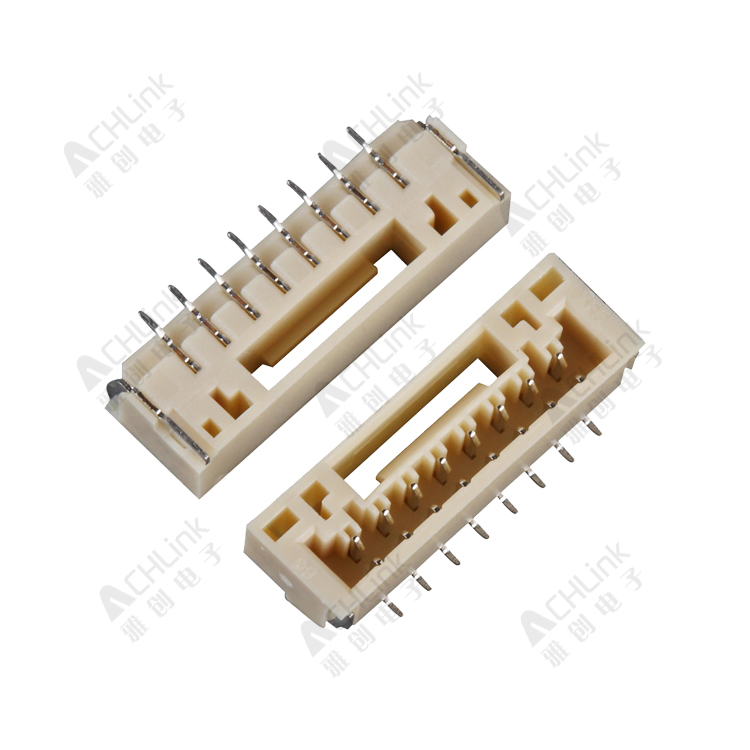

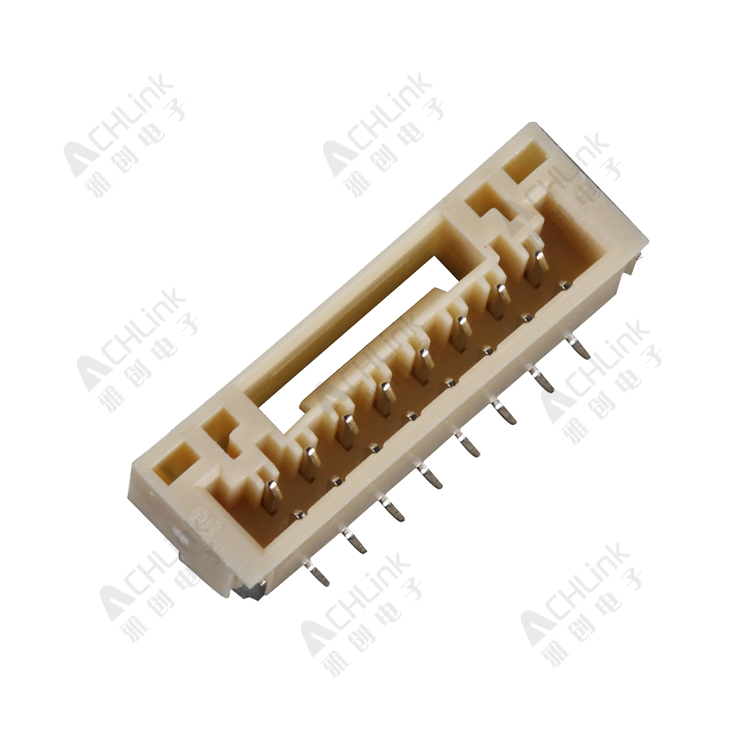

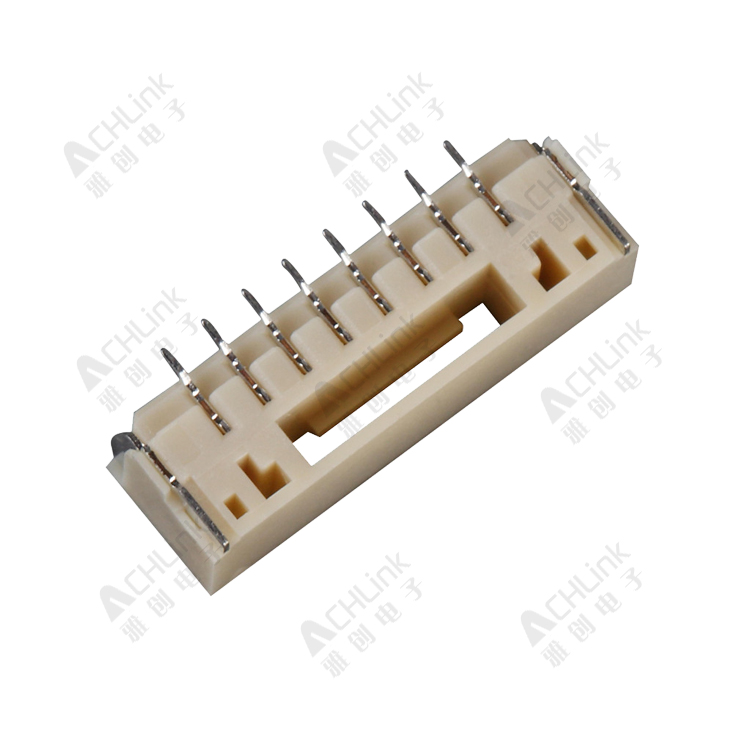

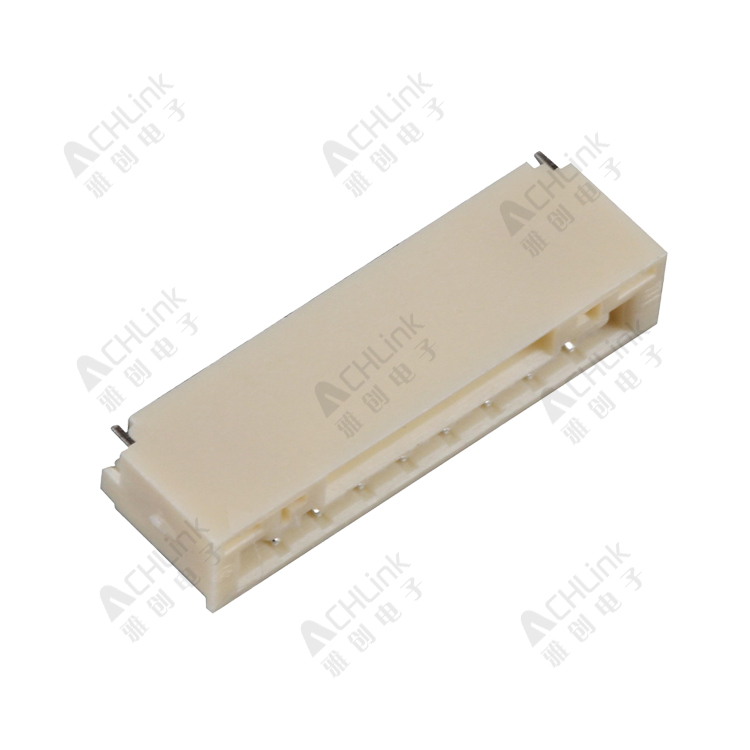

PRODUCT MODEL:7011-XXX-0005
Current rating: 1.0A AC/DC（AWG #28）
Voltage rating: 50V AC/DC
Operating Temperature Range: -25℃～+85℃
Storage Temperature Range: -10 to +60℃
Applicable wires: AWG32#～28#,
Insulation O.D. 0.4~0.8mm(0.016＂to 0.031＂)
Material
Housing:
Thermoplastic or Thermoplastic High Temp., UL94V-0
Terminal:
Copper Alloy; plating Tin over all, under plating Nickel
