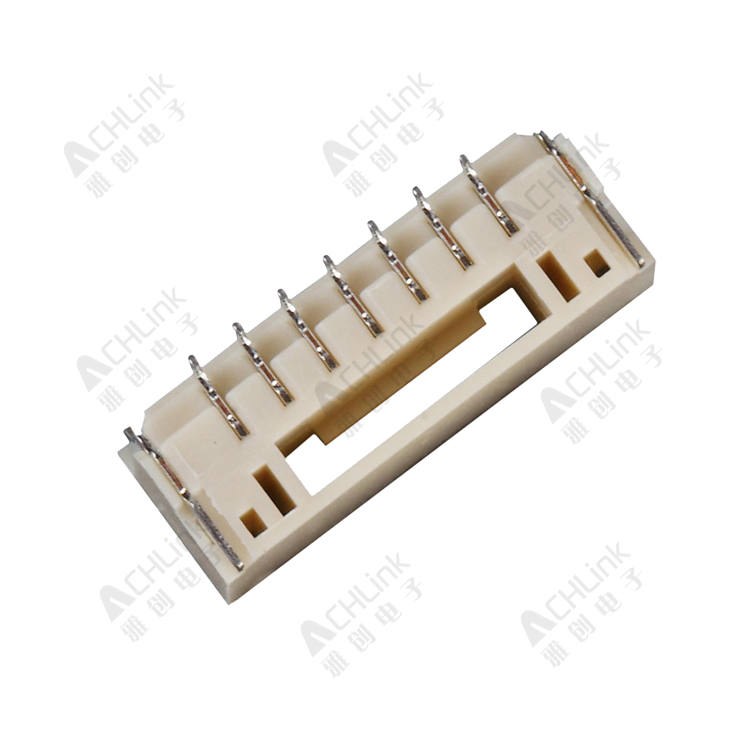

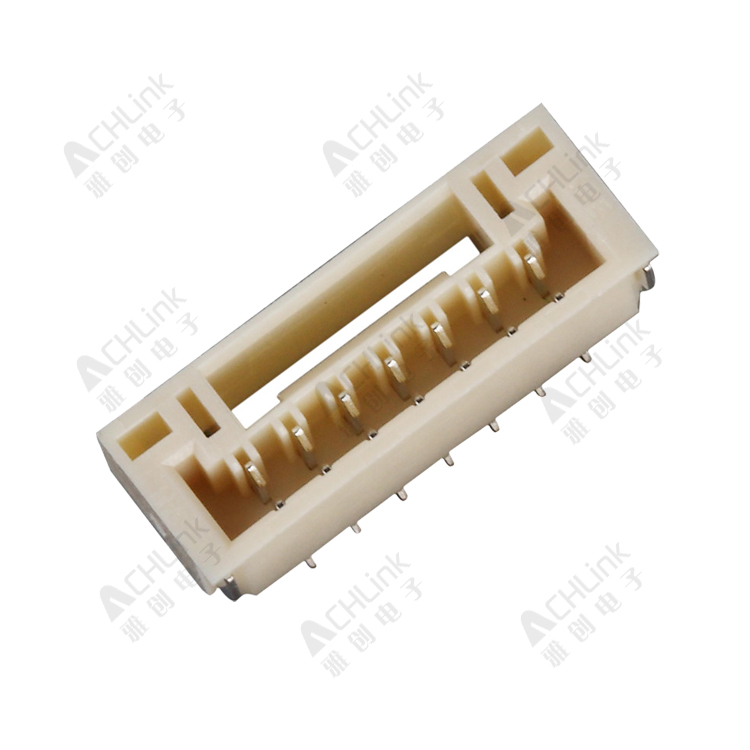

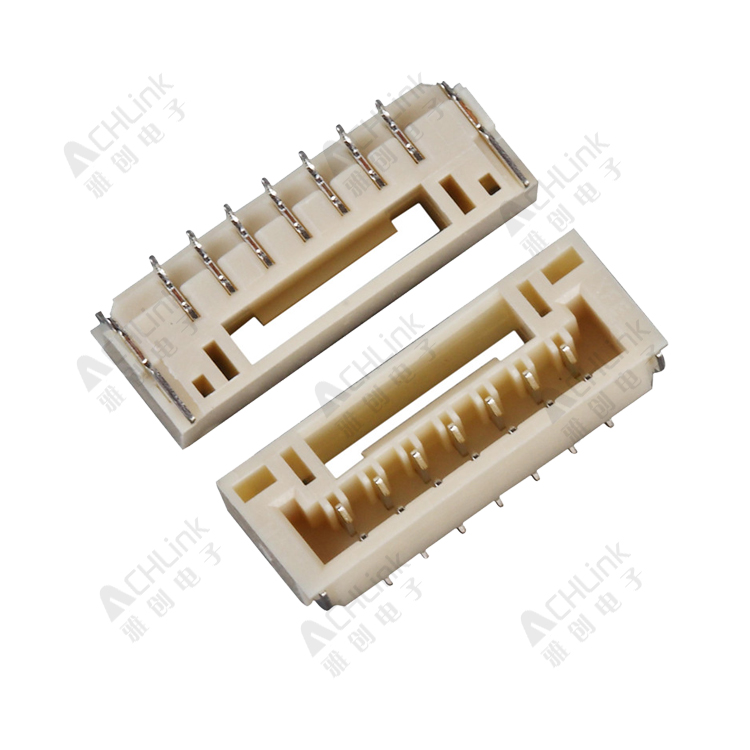

JST GH 1.25MM WIRE TO BOARD CONNECTORS SERIES
左滚动
  • JST GH 1.25MM WIRE TO BOARD CONNECTORS SERIES
  • JST GH 1.25MM WIRE TO BOARD CONNECTORS SERIES
  • JST GH 1.25MM WIRE TO BOARD CONNECTORS SERIES
  • JST GH 1.25MM WIRE TO BOARD CONNECTORS SERIES
右滚动
  • JST GH 1.25MM WIRE TO BOARD CONNECTORS SERIES
PRODUCT MODEL:7011-XXX-0004
Current rating: 1.0A AC/DC(AWG #28)
Voltage rating: 50V AC/DC
Operating Temperature Range: -25℃~+85℃
Storage Temperature Range: -10 to +60℃
Applicable wires: AWG32#~28#,
Insulation O.D. 0.4~0.8mm(0.016"to 0.031")
Material
Housing:
Thermoplastic or Thermoplastic High Temp., UL94V-0
Terminal:
Copper Alloy; plating Tin over all, under plating Nickel
PDF:
