Location：Home > Products > FEMALE HEADER CONNECTOR > Female Header1.27MM double row 180 degrees H=4.3mm

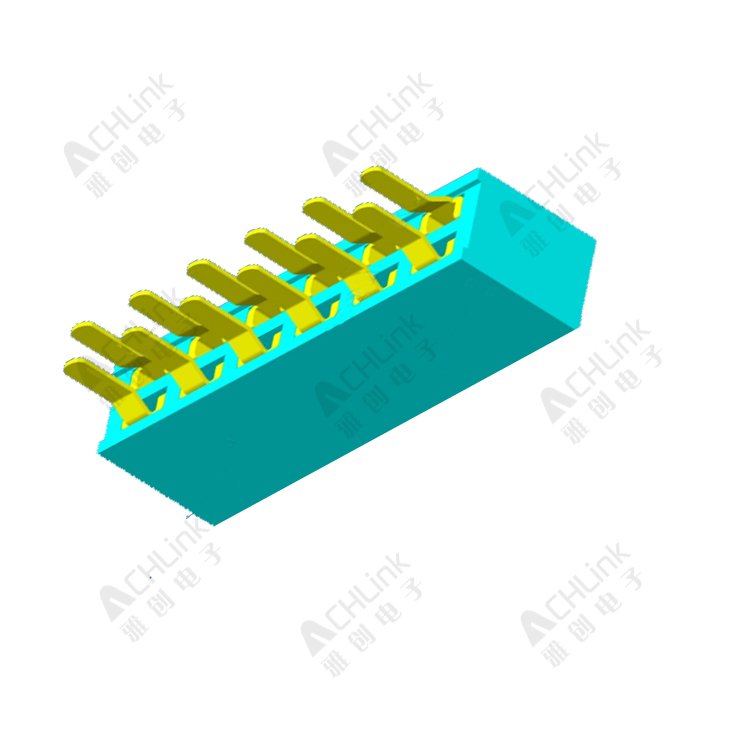

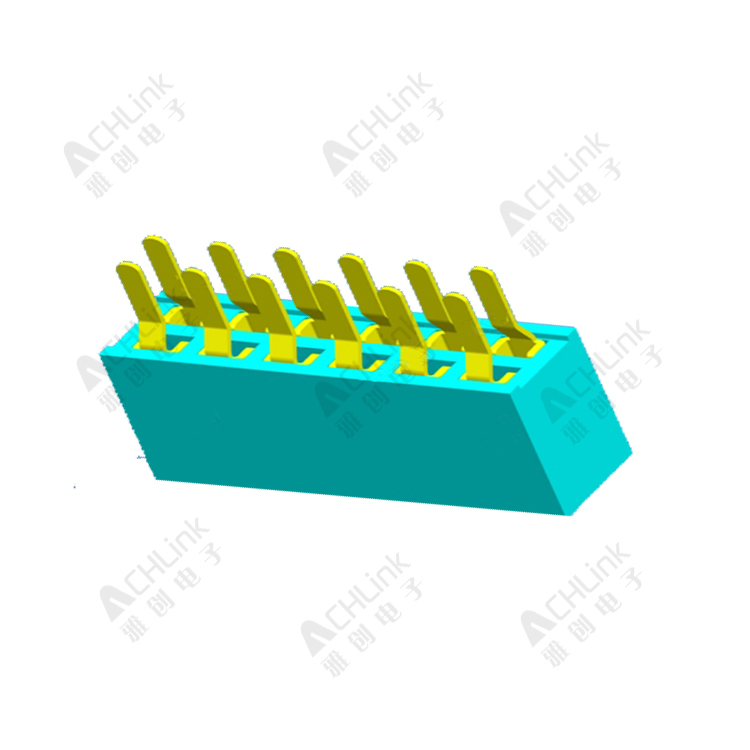

Female Header1.27MM double row 180 degrees H=4.3mm
左滚动
  • Female Header1.27MM double row 180 degrees H=4.3mm
  • Female Header1.27MM double row 180 degrees H=4.3mm
右滚动
  • Female Header1.27MM double row 180 degrees H=4.3mm
PRODUCT MODEL:4032-XXX-0003
Current Rating: 1.0Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator: PA6T UL 94V-0 Black
PDF:
Prev：Female1.00 mm Header Dula Row Straight h=2.0mm Next：MACHINED FEMALE HEADER PH1.27*1.27MM DOUBLE ROW SMTH =3.80MM
