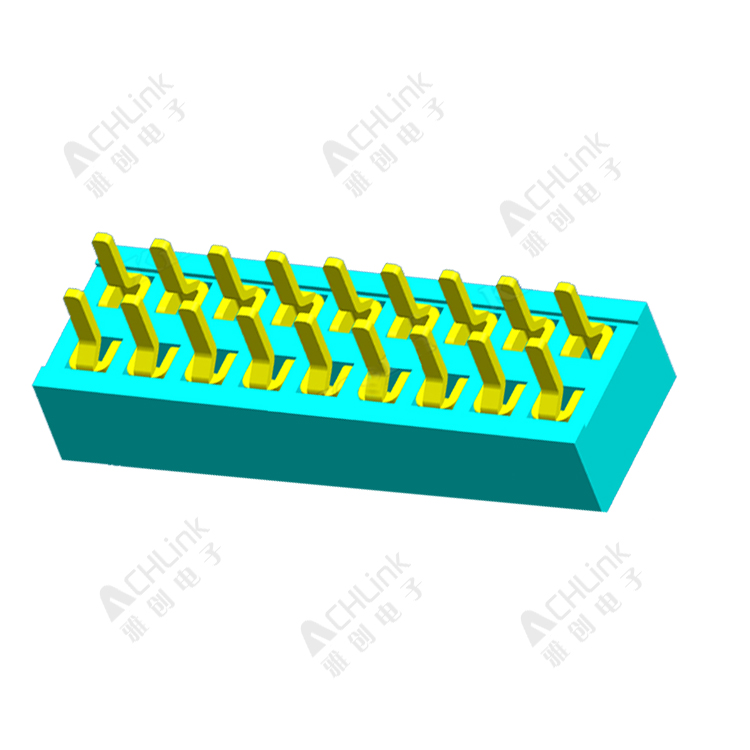

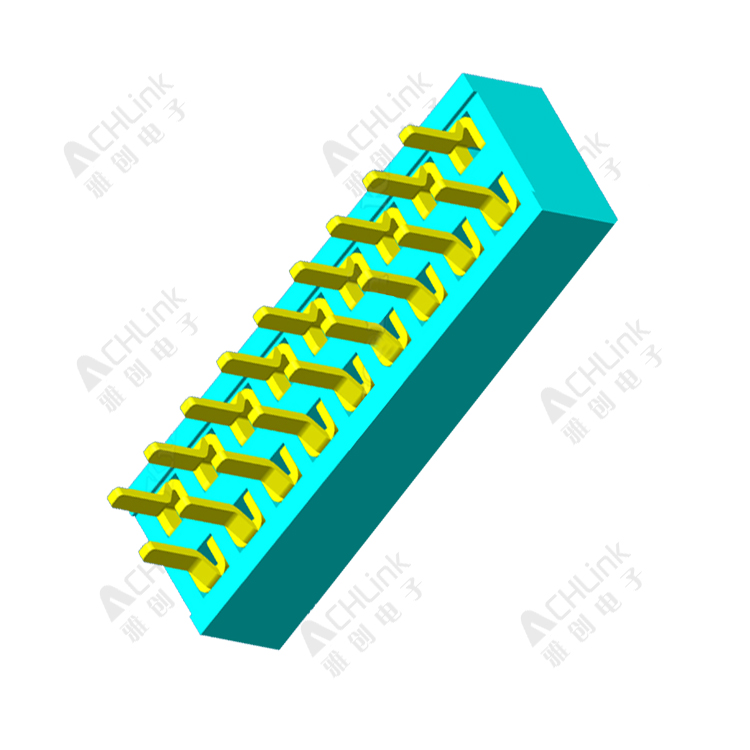

- Female1.00 mm Header Dula Row Straight h=2.0mm
PRODUCT MODEL:4029-XXX-0001
Current Rating: 2.0Amp
Insulation Resistance: 5000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -40°C to +105°C
Contact Material: Brass
Insulator: PA6T UL 94V-0 Black
