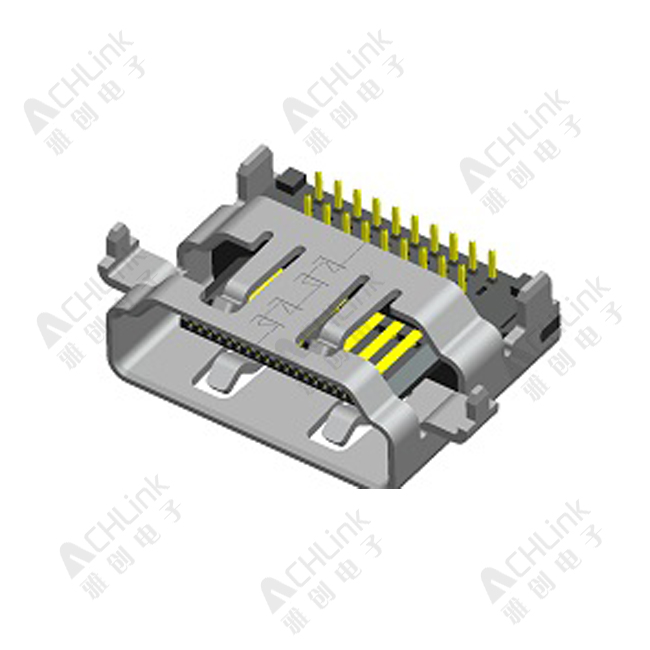

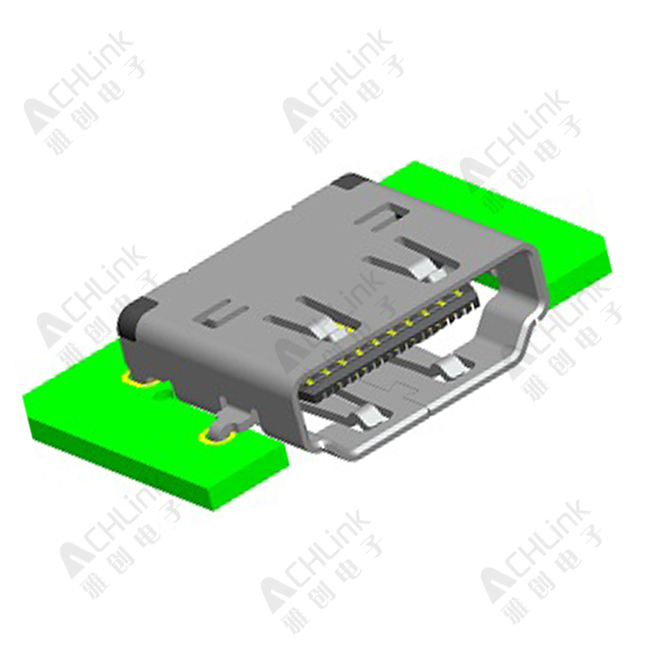

- HDMI 19pin plate end master seat 0.50 Pitch. Forward sink type
PRODUCT MODEL:1090-019-0001
1.MATERIAL SPECIFICATION
1-1.HOUSING: LCP+30% G.F UL94 V-0. COLOR: BLACK.
1-2.CONTACT: COPPER ALLOY C2680R-H T=0.20mm.
1-3.SHELL: STAINLESS STEEL (SUS304R-1/2H T=0.50mm).
2.PLATING SPECIFICATION
2-1.CONTACT: NI50μ'' UNDER PLATED,GOLD FLASH PLATED ON THE FUNCTIONAL AREA OF CONTACT,GOLD PLATING OR TIN ON SOLDER AREA.
2-2.SHELL: NICKEL PLATED OR GOLD FLASH.
1.MATERIAL SPECIFICATION
1-1.HOUSING: LCP+30% G.F UL94 V-0. COLOR: BLACK.
1-2.CONTACT: COPPER ALLOY C2680R-H T=0.20mm.
1-3.SHELL: STAINLESS STEEL (SUS304R-1/2H T=0.50mm).
2.PLATING SPECIFICATION
2-1.CONTACT: NI50μ'' UNDER PLATED,GOLD FLASH PLATED ON THE FUNCTIONAL AREA OF CONTACT,GOLD PLATING OR TIN ON SOLDER AREA.
2-2.SHELL: NICKEL PLATED OR GOLD FLASH.
