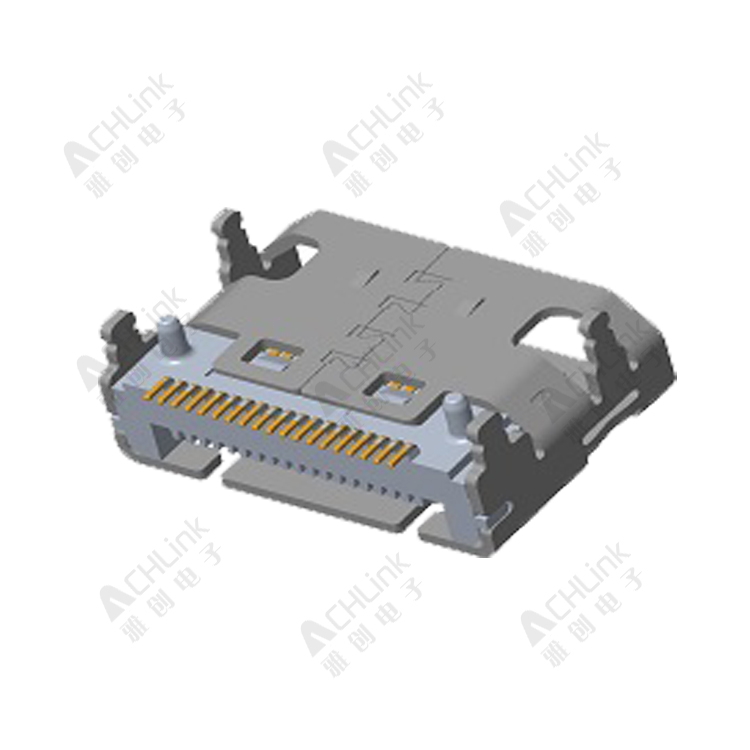

Mini HDMI (C Type) 19pin REC.0.40 Pitch. Top-Mount. Board-Height=3.30mm. SMT Type
左滚动
  • Mini HDMI (C Type) 19pin REC.0.40 Pitch. Top-Mount. Board-Height=3.30mm. SMT Type
右滚动
  • Mini HDMI (C Type) 19pin REC.0.40 Pitch. Top-Mount. Board-Height=3.30mm. SMT Type
PRODUCT MODEL:1092-019-0003
1.MATERIAL SPECIFICATION
1-1.HOUSING: LCP+30% G.F UL94 V-0. COLOR: BLACK.
1-2.CONTACT: COPPER ALLOY C2680R-H T=0.20mm.
1-3.SHELL: STAINLESS STEEL (SUS304R-1/2H T=0.50mm).
2.PLATING SPECIFICATION
2-1.CONTACT: NI50μ'' UNDER PLATED,GOLD FLASH PLATED ON THE FUNCTIONAL AREA OF CONTACT,GOLD PLATING OR TIN ON SOLDER AREA.
2-2.SHELL: NICKEL PLATED OR GOLD FLASH.
PDF:
